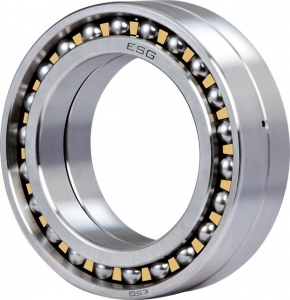

corresponding to the designing of 2 single tow angular contact ball bearings, with less axial space taken;
with 2 inner rings and 1 outer rings;
|
Boundary Dimensions | d | 240 | mm | |||
| D | 370 | mm | |||||
| B | 112 | mm | |||||
| Basic Load Ratings | Cr | 314 | kN | ||||
| C0r | 707 | kN | |||||
| Speed Ratings | Grease | 1000 | rpm | ||||
| Oil | 1300 | rpm | |||||
| Weight | 47 | Kg | |||||
large stock for better delivery;
taking less space for the housing;
