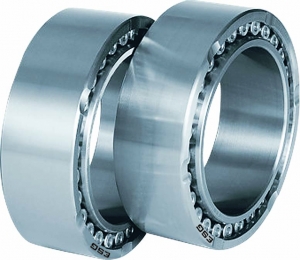

specially designed for steel industry;
popular for use on roll necks;
allowing greater radial load;
|
Boundary Dimensions | d | 280 | mm | |||
| D | 400 | mm | |||||
| B | 285 | mm | |||||
| Fw | 316 | mm | |||||
| Basic Load Ratings | Cr | 3400 | kN | ||||
| C0r | 6400 | kN | |||||
| Speed Ratings | Grease | 1000 | rpm | ||||
| Oil | 1300 | rpm | |||||
| Weight | 113.6 | Kg | |||||
| Equivalent | SKF | FAG | NSK | NTN | KOYO | TIMKEN | URB |
| 314070/VJ202 | 513342.N12BA | 280RV4021 | |||||
radial clearance is generally executed in C3 or C4;
higher rolling efficiency with inner rings remained onto the rolls during processing;
