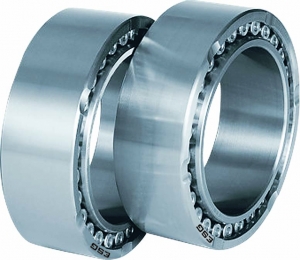

specially designed for steel industry;
allowing greater radial load;
inner rings are separable from the outer rings, convenient for assembling;
|
Boundary Dimensions | d | 260 | mm | |||
| D | 400 | mm | |||||
| B | 290 | mm | |||||
| Fw | 296 | mm | |||||
| Basic Load Ratings | Cr | 2770 | kN | ||||
| C0r | 7090 | kN | |||||
| Speed Ratings | Grease | 1100 | rpm | ||||
| Oil | 1400 | rpm | |||||
| Weight | 134 | Kg | |||||
| Equivalent | SKF | FAG | NSK | NTN | KOYO | TIMKEN | URB |
| 313427 | 518214 | 4R5218 | |||||
stabilizing treatment allowing the bearings to work with temperatures up to 150° C, without dimensional change and distortion;
working under the toughest working environment;
